Action button

CO-6391 Adds the option to use a Text or Calculation field as the source for the iOS app URL scheme of the Open program action.

CO-6355 Adds new Border color and Rounded corners appearance options.

CO-6364 Adds an optional Image option to Button type Action buttons:

Type

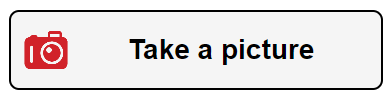

• Button: Display a rectangular button with text and an optional image to the left of the text. Customize the style in the Appearance section.

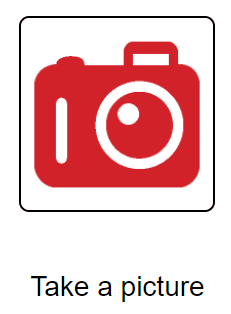

• Image: Display an image button with optional text below the image. Customize the style in the Appearance section.


Image: Upload or Select an image. Optional for Button type. The recommended file type is png with a transparent background. The ideal size is at least 200px in one dimension.

Hide button after click: Check this box if you want the button on the form to be hidden after it is clicked by the user.

Image text: The text to display. You can enter up to 100 characters. Optional for Image type.

Size: For Image type buttons, select Small, Medium or Large size.

If screen is smaller than: For Image type buttons, select an optional size for devices with small screens.

For more control over button arrangement, use a Button Grid.

Appearance

Active text color is used when your button is clicked.

You can also modify the default button colors by going to the Settings tab and selecting Form appearance. Changing the default will modify how button appear in your form unless you select Custom and modify the setting for that one particular field.

Image viewer

CO-6284 Adds an Image viewer control:

Image URL: Select a Text or Calculation (text) field that contains the web URL of the image to view.

Fit image to screen: If the image is smaller than the screen width, expand the image to fill the screen width.

Note: Only the URL of the image is saved when the form is submitted, not the image itself. If the image at the URL is changed after the form is submitted, the new image will be used for in the PDF report.
